Gym Divider Curtains

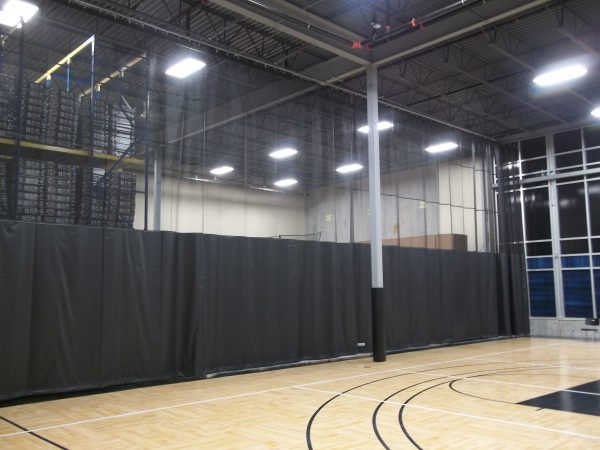

Walk-Draw Gym Divider Curtains is a convenient track-style curtain that offers an economical answer to your space dividing needs. Manually operated and easy to install • Features a 1-7/16” wide enclosed galvanized steel track. Carriers spaced no more than 12” apart with 1” diameter polyurethane wheels. Can be stored flat against a wall or in small corners of a facility.

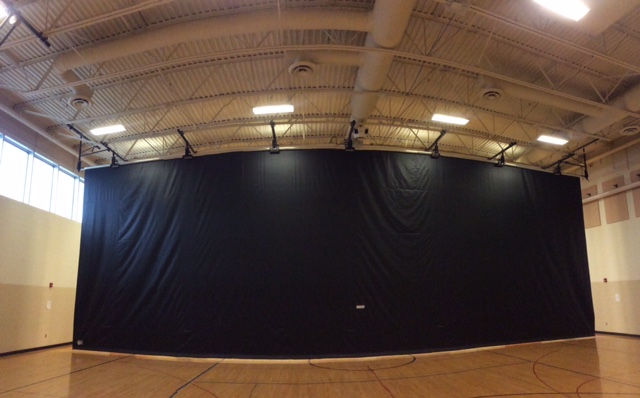

Top Roll Gym Divider Curtains provide a solution for those facilities with height clearance issues. This low profile curtain is designed to operate without belts, cables, exposed wires or guide systems. Fabric rolls within 13.5” of ceiling overhead for maximum clearance. Innovative and extremely quiet internal tubular motor with all electrical components are neatly packaged inside the drive tube. Newly designed expandable roller system. Larger drive tube with vented ends for cooling off the motors. 19 oz. or 22 oz. vinyl lower section and 9 oz. vinyl coated mesh upper section. Curtain has welded seams, fully padded bottom batten, no exposed hardware. Mounting assemblies allow for easy installation and leveling• Internal motor system has a clean look with no wires or cables exposed. Internal drive shaft motors enable lower power requirement and lower torque to move with similar speed as standard external motors. Standard motors pull 15 amps, ours only 3.5 amps. Internal motors allow for larger variation of building configurations with space constraints. Designed carrier system has an increased diameter aluminum drive pipe for speeding up the roll time and prolonging the vinyl life. New ball bearing roller assembly designed with longer rollers to distribute the vinyl load, reducing stress on the material. Hardened steel rollers eliminate dirt buildup and tracking marks on vinyl that wood or rubber rollers create. 13.5” compact profile for height clearance issues.

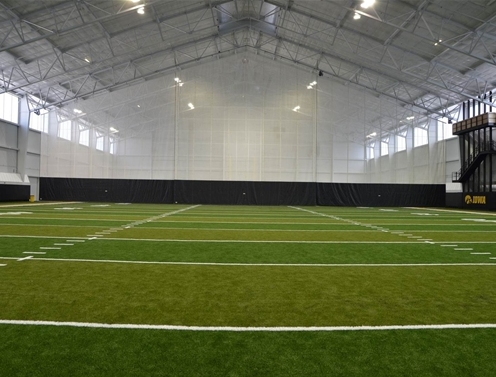

Peak-Fold Gym Divider Curtains is precisely designed to fold to exact ceiling contour of nearly any ceiling slope. When sloped ceilings require creative use of space, the peak-fold curtain is the best solution. Equipped with 1/8” cables, spaced not more than 10’ apart, ending in individual hoist drums. Custom engineered variable diameter cable drums match individual cable travel to the ceiling slope. Hoist driven by 1 HP, 115 V AC gear motor with overload thermal protection, single-keyed toggle key switch. No exposed hardware.

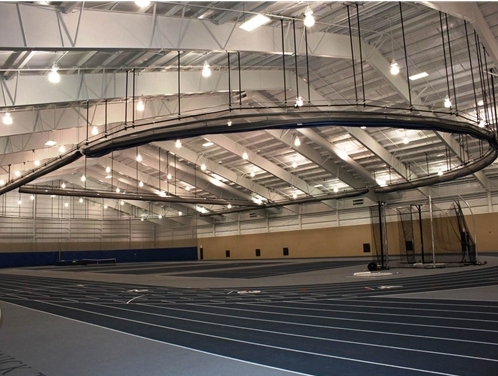

Radius Fold-Up Gym Divider Curtains offer a great solution for dividing court space from any outer space such as a running track with a radius. Unique design utilizing double universal joints allows the curtain to follow the exact radius of the track. Features easy installation and 1 HP electric operation via standard key switch, or optional key pad or wireless remote. Independent cast aluminum drums are easily adjustable. Features 19 oz. or 22 oz. vinyl lower section and 9 oz. vinyl coated mesh upper section with welded seams and fully padded batten with no exposed hardware. 2 3/8” diameter center line continuous drive shaft for even curtain balance and load distribution. Straight or curve design available. Curtain lock safety device locks drive shaft if speed exceeds 1-1/2” per second.

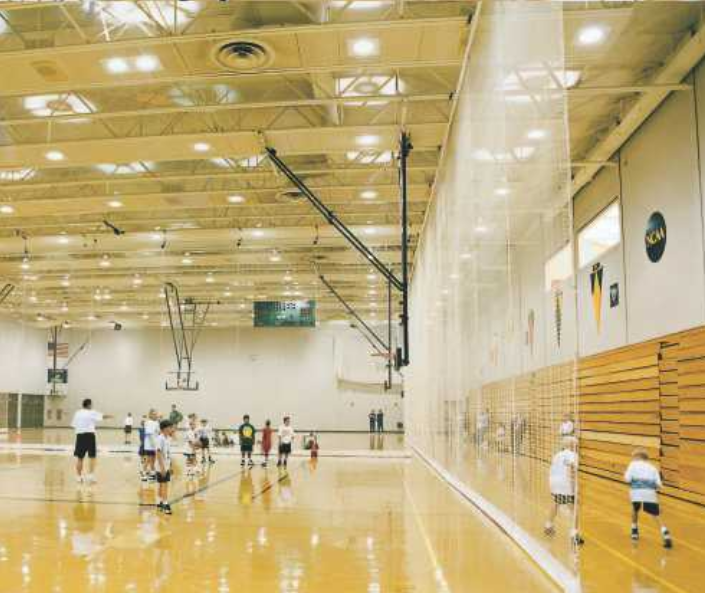

Custom Netting Divider Curtains can be configured for special locations and uses. For use to divide and protect, yet have see through ability and airflow. Choose a smaller netting and use it as a hitting wall for golf, tennis, baseball, softball. Another popular use is dividing indoor tennis courts to keep stray balls from entering other courts.
